What is Memory Management in Python?

Memory Management is a crucial part of efficient logic development. Not only in python but in any programming language, memory management plays a very important role.

So what is Memory Management in python? and why is it so important? the answer to this question lies in the basic understanding of programming. Whenever a program is written and executed on a computer there is a requirement of storing temporary data in the memory for basic computation, these are the variables and literals that we write in our code. All this information has to be stored and when the program evolves into a larger project the amount of data becomes more and more complex. To make the project efficient and faster Memory Management has a key role.

Python is one of the most popular programming languages. It is being used in large-scale applications of Artificial Intelligence and Data Science which demands higher efficiency. Thus one must have a good knowledge of memory management in python to implement scalable algorithms.

In Python, memory management is done by python's internal memory manager and its performance largely depends upon the way python is internally implemented, yes python is written in some other language! Among the implementations of python CPython, JPython and PyPy are worth a mention. For the context of this article, we are going to use CPython as the base for all further discussion.

CPython is a C implementation of the Python language. As we know C is a non-object-oriented language and python is a completely object-oriented language. So studying memory management in CPython will provide us with a deeper understanding of various object-oriented concepts.

Python Memory Allocation

Python Memory Manager is responsible to manage memory allocation and deallocation to various processes that are under execution in python.

Every python process has two types of memory allocated to it

• Static Memory
• Dynamic Memory

All the functions we declare in python code has each of these memory associated with them.

Static Memory Allocation

Whenever a new function or class is declared it is very common to have some variable declaration inside them, these declarations are associated with the function itself and do not change in the runtime. They occupy a fixed memory size. Hence these are stored in the stack area.

So what is tall stack allocation? For every function call in python, there is a structure maintained in the memory of the process. This structure is called a function block. Python memory manager maintains a stack of such function blocks. When a function is called its function block is pushed onto this stack and on return, the same block is popped from the stack.

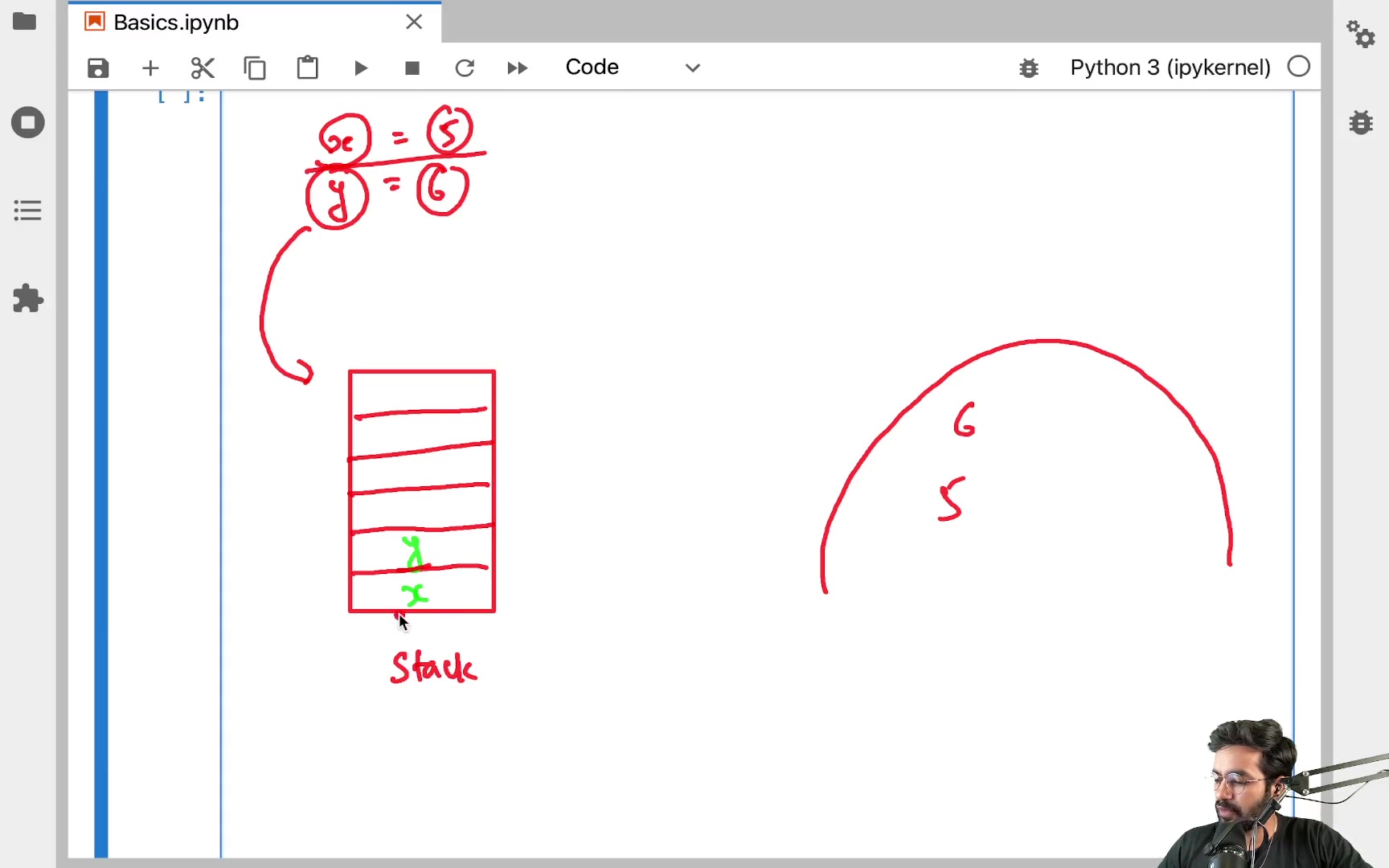

The below example demonstrates variables that are stored in the stack memory.

Dynamic Memory Allocation

The second type of memory available in a program is called heap memory. The heap memory is separate from the static stack memory, as this memory can be dynamically requested(allocated) and released(deallocated) in runtime. The memory size required for such variables cannot be determined beforehand, and hence it is called dynamic memory.

The Default Python Implementation

Remember that Python itself is written in another language, the primary language used to implement python is C. CPython is the primary python implementation, as we say it is the default python implementation.

To understand memory management in python fully, we should take a deeper look at how Python is implemented in the C programming language. It is quite amusing how a purely object-based language python is implemented using C language, which does not have native support for object orientation.

We all know that everything in python is an object even the basic data types int, float, and string. To achieve this on an implementation level in C there is a struct named PyObject. The PyObject struct is inherited by every other object in python.

PyObject struct contains two essential properties:

• ob_refcnt- count of the total number of references to the current object
• ob_type - a pointer to the data type class of the current object

The reference count is used by the garbage collector to free up space for unreferenced objects. The type pointer points to the struct that contains the definition of the corresponding Python object like str or float.

All the objects created in Python have their corresponding memory allocators and deallocators that request memory whenever required and free it after the need is over.

As we speak about allocating and deallocating memory, it is important to know that memory is a shared resource, and there can be devastating results if two processes try to access the same memory location. To avoid such situations there is a rule in place known as the Global Interpreter Lock.

The Global Interpreter Lock (GIL)

The python interpreter has a multi-threaded model. It means that there can be more than one function executing parallel with each other. This brings into attention one of the biggest problem in computation, the concurrency.

Suppose two threads execute in parallel under the python interpreter, what happens when both these threads try to access the same memory location and at the same time. The result is called a race-around condition, where the output is completely unpredictable, and of no use.

To get around this problem of concurrency the python interpreter uses a concept called Global Interpreter Lock. The GIL locks the interpreter for one thread accessing a critical part of memory, while the lock is acquired no other thread can access the interpreter let alone perform any memory operations.

In CPython, the GIL is used to perform shared memory operations without any conflicts.

Python Garbage Collector

Recall that in CPython PyObject is the base for all other objects. It contains an attribute that has a total reference count for the object. This reference count is used to free up unused objects.

In python when garbage collection occurs all the objects with reference count zero are deallocated from the memory. This memory is thus freed and is now available inside the program heap.

The reference count increases in the following scenarios:

• on assigning a new name to the object
• on passing the object to a function as an argument
• on using the object inside a container like a dictionary or a tuple

The reference count decreases when:

• a function to which the object was passed returns
• the object is removed from its container
• execution flow goes out of the scope inside which the object was declared

A routine function called garbage collector is executed frequently to perform the memory cleanup.

Reference Counting in Python

In python, reference counting means how many references are currently present to the current object from other objects. As discussed previously the reference count increases after the operations that add more references to the current object. Similarly, the count decreases on the operations of dereferencing the current object. The memory is freed when the count becomes zero.

To understand the concept of reference count look at the example below.

The Python memory manager is of greedy nature, whenever we assign a variable to another variable, the interpreter does not allocate new memory space into the private heap of the python. Instead, it adds a new reference to the existing object in the heap.

The output of the above code is x and y refer to same object.

Take a look at the modified code below.

The output of the above code is x and y do not refer to the same object.

Here the variable y is allocated a new block of memory when an operation of addition is performed on it.

Transforming the Garbage Collector

In the previous section, we can see that reference count can be easily used to free up the memory occupied by those objects that have zero reference count. But there is a slight drawback to this method, the reference count does not allow us to resolve cyclic references. Thus the objects that are not used but have interdependency will never be disposed of from the memory.

To get around this python has introduced the concept of Generational Garbage Collector (GC).

The Generational Garbage Collector categorizes all the objects in three generations, for each generation there is a threshold value. The threshold value corresponding to a generation tells us the number of objects in that generation that are allowed to be present before the garbage collection occurs.

The garbage collector promotes an object to a higher generation whenever it survives a garbage collection cycle.

GC module in python allows us to manipulate and tweak the internal Garbage Collector. This module allows us to view the current number of objects in each generation using get_count() function. To manually trigger the garbage collection collect() function is used. To view and change the thresholds of each generation use the get_threshold() and set_threshold() function.

The example below demonstrates the use of gc module:

In the above example, we set the threshold values to 1200, 25, and 25 for the first, second and third generations respectively. This makes the garbage collector perform the collection cycle less frequently.

To learn more about Count() in python, Click here.

CPython Memory Management

CPython implements its own memory manager which can be used on top of the existing malloc available in the C language. This memory manager gives python an upper hand while allocating the memory to any new object that is created. The CPython's memory manager is optimized for small-sized data at a time. Since the data that is inserted or deleted in python is usually a single object or part of a collection like a list or a dict. The efficiency of CPython's Memory manager proves a great advantage over the traditional malloc.

To achieve this efficiency the memory manager divides the memory available to the python process into three kinds of pieces

• blocks - being the smallest possible division of memory
• pools - is the set of a fixed number of blocks
• arenas - are the largest chunk of memory under which multiple blocks exists.
